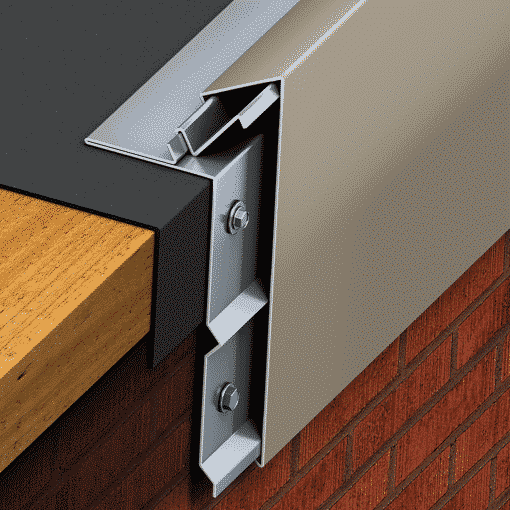

PAC Snap Edge Extended Fascia

With PAC Snap Edge Extended Fascia, outstanding protection against wind up-lift damage for flat roof installations meets superior economy and ease of installation. PAC Snap Edge Extended Fascia is the ideal solution for keeping roof edge projects on schedule and on budget while meeting the rigorous standards of ANSI/SPRI ES-1 standards.

Available in face heights up to 12 1/2″, the extended profile allows for extra coverage over multiple nailers while eliminating the use of extenders.

Installation is fast and easy, featuring a snap-on cover to eliminate field crimping, and an efficient non-penetrating design that does not require stripping in or heat welding. The product is produced in 12′ lengths for an estimated 20% – 40% savings in material handling over the typical 8′ and 10′ lengths.

Two Versions Available

Both versions of PAC Snap Edge Extended Fascia are available, in .050 and .063 aluminum:

• Fully Adhered/Mechanically Attached Single-Ply (FA)
• Built-Up/Modified (BUM)

PAC Snap Edge Extended Fascia features pre-punched holes which not only provide quicker installation for labor savings, but are slotted to allow for thermal movement for guaranteed long-term performance. Competitively priced, PAC Snap Edge Extended Fascia ensures a consistent, high quality, low-cost factory engineered product on every project.

Offering a wide range of factory-fabricated accessories such as miters, scuppers, Petersen provides the complete system to ensure a clean, sure-fitting product while eliminating the need for field fabrication.

Profile Variations
